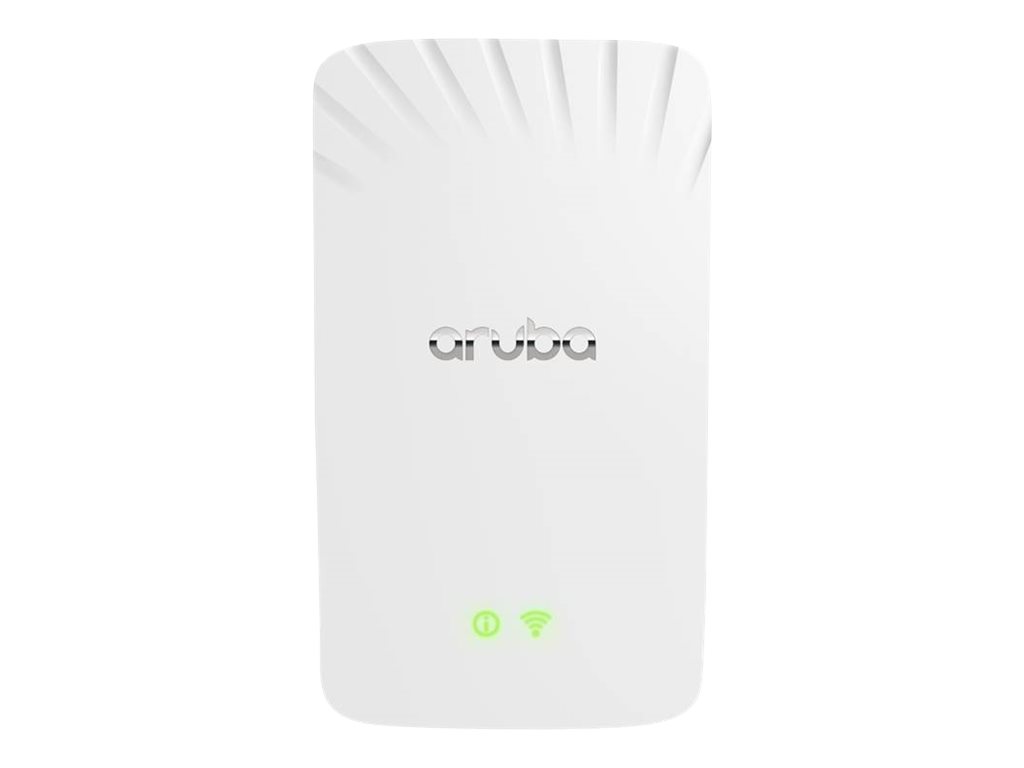

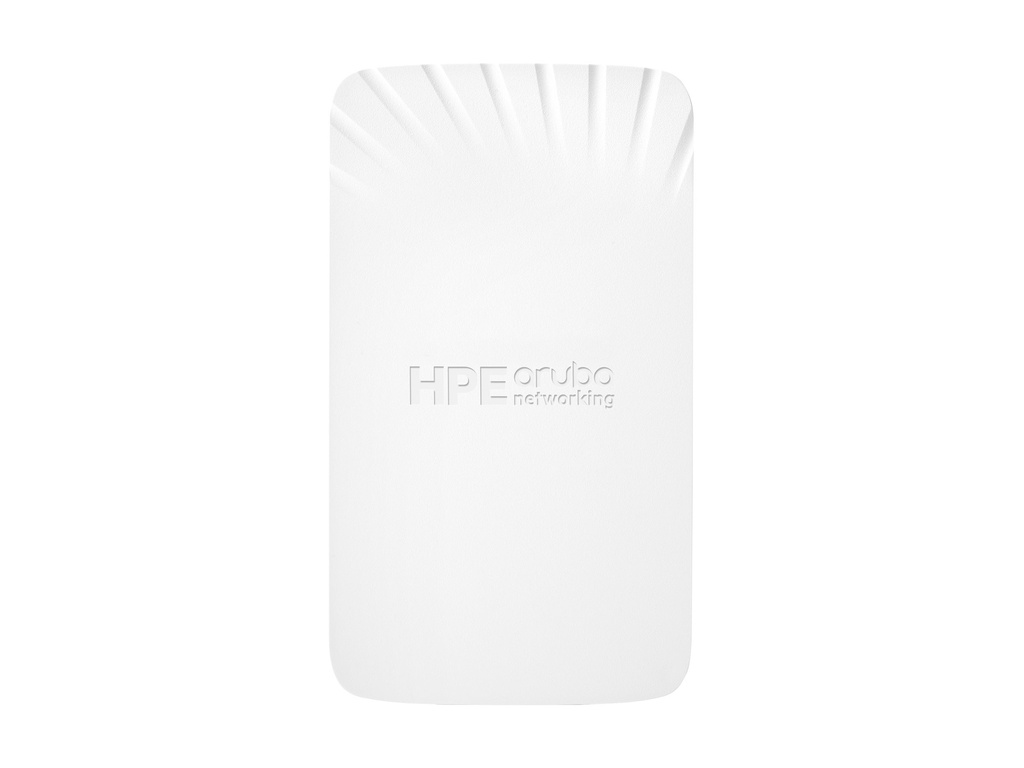

HPE Aruba AP-505HR (EU) Unified Remote - Accesspoint

Accesspoint

8.6 cm

4.7 cm

15 cm

360 g

Extern

Kabellos

1.2 Gbps

CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA

IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)

OFDM, DSSS, OFDMA

IPSec

2.4 GHz, 5 GHz

Maximale Datenrate (5 GHz): 1,2 Gbit/s
Maximale Datenrate (2,4 GHz): 287 Mbps
VPN-Durchsatz (IPSec): 500 Mbps
Aggregatdurchsatz: 1,5 Gbit/s

Drahtlose Klienten pro W-Lan-Radio: 256
BSSIDs über Radio: 16
OFDMA-Einheiten: 8

Port Status, Stromversorgung, System, Status, PoE, Funk

Auto-Uplink (Auto MDI/MDI-X), DFS-Unterstützung, Deep Packet Inspection (DPI), IPSec Virtual Private Network (VPN), unterstützt Wi-Fi Multimedia (WMM), Trusted Platform Module (TPM), 2T2R MIMO-Technologie, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), kompatibel mit Transmit Beam-Forming (TxBF), Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, Cyclic Shift Diversity (CSD), Grüne AP-Technologie, MU-MIMO-Technologie, Paketaggregation A-MPDU, Paketaggregation A-MSDU, SU-MIMO Technologie, Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), unterstützt High-Throughput (HT), Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), 2x2 MIMO-Technologie, unterstützt Very High Throughput (VHT), Sicherheitsslot (kompatibel mit Kensington Slot), Orthogonal Frequency Division Multiple Access (OFDMA), unterstützt High Efficiency (HE), Target Wait Time (TWT), HPE SmartRate, Advanced IoT Coexistence (AIC), Policy Enforcement Firewall (PEF)

SSL, WPA, WPA2, WPA3, WPA3-Enterprise, Opportunistic Wireless Encryption (OWE), WPA3-Enhanced Open, Simultaneous Authentication of Equals (SAE), WPA2-MPSK

IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Intern

2

Gerichtet

5.4 dBi

Ja

Bluetooth Low Energy (LE), Zigbee

4 x 1000Base-T - RJ-45
1 x HPE Smart Rate - RJ-45
2 x 1000Base-T (PoE+) - RJ-45
1 x USB 2.0 - Type A
1 x Konsole - Micro-USB

Tischmontiertes Set

Netzteil

EN 60950, IEC 60950, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, EN 62368-1, IEC 62368-1, ETS 300-019, ISED, RED 2014/53/EU

BTO

PoE

6 Watt

ArubaOS, InstantOS

11.1 cm

5.4 cm

16.7 cm

450 g

Begrenzte Garantie - Lebensdauer

0 °C

40 °C

5 - 93% (nicht kondensierend)
